1620有創式血壓傳感器中英文產品介紹
來源:賽斯維傳感器網 發表于 2014/6/9





  Applications: Disposable Blood Pressure, Kidney Dialysis Machines, Medical Instrumentation, Infusion Pumps

  Industries: Medical

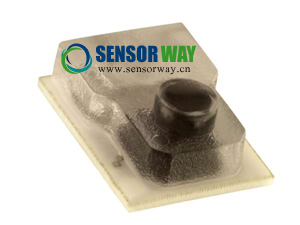

  Description: The 1620 is a fully piezoresistive silicon pressure sensor for use in invasive blood pressure monitoring. The sensor is designed to be used with automated assembly equipment and can be dropped directly into a customer's disposable blood pressure housing. The sensor is designed to meet the requirements as described in the Association for the Advancement of Medical Instrumentation (AAMI) specification for Blood Pressure Transducers. The pressure sensor consists of a pressure sensing element mounted on a ceramic substrate. Thick-film resistors on the ceramic substrate are laser-trimmed for compensation and calibration. A plastic cap is attached to the ceramic substrate to provide an easy method of attachment to the customer’s assembly and protection for the sensing element. A dielectric gel is placed over the sensor to provide electrical and fluid isolation. The 1620 pressure sensors are batch manufactured in a 10x12 element array on a ceramic substrate (120 units per substrate). The products are shipped in anti-static shipping containers. They can also be shipped on a tape and reel. Performance characteristics and packaging can be easily tailored on a special order basis to meet the requirements of specific customers.

  Features:
   Disposable Blood Pressure Sensor
   AAMI Specification
   Low Cost
   Multiple Configurations
   Calibrated per AAMI Specifications
  Low Cost Disposable Design
   Solid State Piezoresistive Sensor
  Top Side Pressure Entry
   Compatible with Automated Assembly Equipment
   Integral Dielectric Gel Barrier
  Fully Tested and Temperature Compensated

  典型應用: 有創血壓,腎透析,醫療設備,輸液泵

  行業: 醫療

  產品描述: 1620硅壓阻式壓力傳感器用于有創血壓監測。傳感器適合自動化裝配,并可直接裝入客戶的一次性血壓計外殼內,符合AAMI規范。壓力傳感器由一個封裝在陶瓷基板上的傳感元件構成。陶瓷基板上的厚膜電阻經過激光修正,用于溫度補償和校正。陶瓷基板上的塑料蓋方便傳感器與客戶組件的連接,并可保護傳感元件。傳感器上的絕緣膠用于絕緣和隔離液體。1620壓力傳感器在陶瓷基板上排成10×12個(120個/板),采用防靜電包裝,也可按卷帶式包裝。為了滿足特殊用戶的需求,產品性能和包裝方式可以定制。

  特點:

  一次性血壓傳感器
  符合AAMI規范
  低成本一次性設計
  多種結構
  固態壓阻式傳感器
  正面受壓
  適合自動化裝配
  絕緣膠隔離
  溫度補償

  1620壓力傳感器更多技術參數及規格書下載請瀏覽:http://kumelu.com/sensors/66.html

  北京賽斯維測控技術有限公司產品咨詢熱線:010-84775646,84775648。
