Applications: Mobile water depth measurement systems , Diving computers and divers watches

　　Industries: Consumer Goods

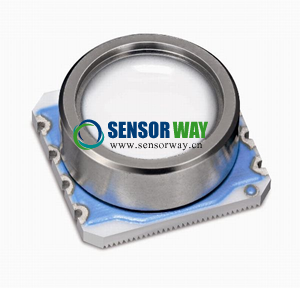

　　Description: The MS5541C is the miniature version of MS5535C pressure sensor module. It contains a precision piezoresistive pressure sensor and an improved version of the 16 Bit Micropower Sensor interface IC known from the MS5535C. Compared to the previous version the ESD sensitivity has been improved to 4kV on all pins. In addition to this the MS5541C is from its outer dimensions compatible to the MS54xx series of pressure sensors. It uses an antimagnetic polished stainless steel ring for sealing with O-ring. The sensor provides 16 Bit pressure and temperature data via a 3 wire serial interface that can be easily interfaced with 4 Bit low power microcontrollers. 64 Bit of factory programmed PROM provides calibration data for a highly accurate pressure and temperature calculation. The MS5541C is fully software compatible to the MS5535C and previous versions of MS5541.

　　Features:

　　Integrated pressure sensor
　　Pressure range 0 - 14 bar (200 PSI)
　　Resolution 1.2 mbar
　　Small size 6.2 x 6.4 mm
　　16 Bit ADC
　　6 coefficients for a software compensation stored on-chip
　　3-wire serial interface
　　1 system clock line (32.768 kHz)
　　Temperature range -40..+85°C
　　Low voltage (2.2 to 3.6V)
　　Low power (Standby current: 0.1uA)
　　Pb-free and RoHS-compatible
　　No external components required

　　典型應用: 手持水深測量系統，潛水設備和潛水手表

　　行業: 消費電子和家用電器

　　產品描述: MS5541C是MS5535C壓力傳感器的小型版，包括一個硅壓阻壓力傳感元件和一個模數轉換IC，防磁拋光不銹鋼圈與O型圈配合用于防水。產品根據壓力和溫度變化產生的電壓變化轉換為16位數字輸出，通過3線接口和外部微控器通訊。與之前的版本相比，MS5541C的防靜電能力更強（4kV ）。MS5541C在安裝上與MS54XX系列壓力傳感器兼容。MS5541C與MS5535C以及其他版本的MS5541具有軟件兼容性。64位的工廠編程PROM提供高精度壓力和溫度的校正數據。

　　特點:

　　集成壓力傳感器
　　壓力量程：0 - 14 bar（200 PSI）
　　分辨率：1.2 mbar
　　尺寸小：6.2 x 6.4 mm
　　16位ADC
　　6個軟件補償系數
　　3線串口
　　1條系統時鐘線（32.768 kHz）
　　工作溫度范圍：-40℃ ~ +85℃
　　低壓供電（2.2 ~ 3.6V）
　　低功耗（待機電流：0.1uA）
　　無鉛&RoHS認證
　　無需外部元件
